Products-

PLS Cam Locks-

Cam Lock Descripton

PLS-CL038 KD, KA PS101, KA PS102, KA HL305 3/8" Multi-Function Cam lock

PLS-CL078 KD, KA PS101, KA PS102, KA HL305 7/8" Multi-Function Cam lock

PLS-CL118 KD, KA PS101, KA PS102, KA HL305 1 1/8" Multi-Function Cam lock

PLS-CL138 KD, KA PS101, KA PS102, KA HL305 1 3/8" Multi-Function Cam lock

PLS-CL134 KD, KA PS101, KA PS102, KA HL305 1 3/4" Multi-Function Cam lock

PLS Cutters Locks-
DUPLICATING MACHINE CUTTERS :

Cutter No

Cutter Description

PLS CU5 MILLING CUTTER, concave back, for Curtis & Others

PLS 10MC

MILLING CUTTER, 2 3/4 Diameter, .280 thick, 7/8" hole

PLS 11MC

MILLING CUTTER, 2 1/4 Diameter, .290 thick, 1/2" hole

PLS 19MC

MILLING CUTTER

PLS 23RF

ROTORY FILE, 2 1/4 Diameter, .250 thick, 1/2" hole

PLS X23MC

MILLING CUTTER, 2 3/8 Diameter, .093 thick, 1/2" hole

PLS 34MC

MILLING CUTTER, 2 1/4 Diameter, .250 thick, 1/2" hole

PLS SMS 45

SIDE MILLING SLOTTER, 2 3/8 Diameter, .045 thick, 1/2" hole

PLS CW 80 MC

For Borkey, Delta, and Rytan type machines 80MM 5MM 15MM

PLS CW 80 CA Same as above, but Carbide version

PLS CW 84 For One, Bravo, KD50C 80MM 5MM 16MM

**DUPLICATING MACHINE CUTTERS :**
Cutter No	Cutter Description
PLS CU5	MILLING CUTTER, concave back, for Curtis & Others
PLS 10MC	MILLING CUTTER, 2 3/4 Diameter, .280 thick, 7/8" hole
PLS 11MC	MILLING CUTTER, 2 1/4 Diameter, .290 thick, 1/2" hole
PLS 19MC	MILLING CUTTER
PLS 23RF	ROTORY FILE, 2 1/4 Diameter, .250 thick, 1/2" hole
PLS X23MC	MILLING CUTTER, 2 3/8 Diameter, .093 thick, 1/2" hole
PLS 34MC	MILLING CUTTER, 2 1/4 Diameter, .250 thick, 1/2" hole
PLS SMS 45	SIDE MILLING SLOTTER, 2 3/8 Diameter, .045 thick, 1/2" hole
PLS CW 80 MC	For Borkey, Delta, and Rytan type machines 80MM 5MM 15MM
PLS CW 80 CA	Same as above, but Carbide version
PLS CW 84	For One, Bravo, KD50C 80MM 5MM 16MM

CODE MACHINE CUTTERS :

Cutter No

Cutter Description

PLS CW 14 MC For Standard Large Cylinders - 100 Degree Angle

PLS CW 20 FM For Sargent - 76 Degree Angle

PLS CW 47 MC For Automotive Cylinders - 47 Degree Angle

PLS CW 90 MC For Large Cylinders with high/low cuts

PLS CW 1011 MC For Standard Small Cylinders - 90 Degree Angle

PLS CW 1012 MC For Medeco High Security Cylinders

PLS CW 1013 MC For Emhart High Security Cylinders

PLS CW 1014 MC For Kwikset, Weiser, and Weslock - .080 Flat

**CODE MACHINE CUTTERS :**
Cutter No	Cutter Description
PLS CW 14 MC	For Standard Large Cylinders - 100 Degree Angle
PLS CW 20 FM	For Sargent - 76 Degree Angle
PLS CW 47 MC	For Automotive Cylinders - 47 Degree Angle
PLS CW 90 MC	For Large Cylinders with high/low cuts
PLS CW 1011 MC	For Standard Small Cylinders - 90 Degree Angle
PLS CW 1012 MC	For Medeco High Security Cylinders
PLS CW 1013 MC	For Emhart High Security Cylinders
PLS CW 1014 MC	For Kwikset, Weiser, and Weslock - .080 Flat

PLS Cylinders-
PLS Cylinders :

Cutter No

Cutter Description

PLS M100 1" Mortise Cylinders-Available in Kwikset, Schlage and Wieser Keyways

PLS M118 1 1/8" Mortise Cylinders-Available in Kwikset, Schlage and Wieser Keyways. (Comes w/ both STD and AR cams)

PLS M114 1 1/4" Mortise Cylinders-Available in Kwikset, Schlage and Wieser Keyways

PLS R005 Rim Cylinders-Available in Kwikset, Schlage and Wieser Keyways

PLS T100 1" Mortise T-Turn

PLS T118 1 1/8" Mortise T-Turn

PLS D100 1" Dummy Cylinder

PLS D118 1 1/8 Dummy Cylinder"

Available in these Finishes- 03 (Bright Brass), 13 (Duro), and 26D (Satin Chrome)

**PLS Cylinders** :
Cutter No	Cutter Description
PLS M100	1" Mortise Cylinders-Available in Kwikset, Schlage and Wieser Keyways
PLS M118	1 1/8" Mortise Cylinders-Available in Kwikset, Schlage and Wieser Keyways. (Comes w/ both STD and AR cams)
PLS M114	1 1/4" Mortise Cylinders-Available in Kwikset, Schlage and Wieser Keyways
PLS R005	Rim Cylinders-Available in Kwikset, Schlage and Wieser Keyways
PLS T100	1" Mortise T-Turn
PLS T118	1 1/8" Mortise T-Turn
PLS D100	1" Dummy Cylinder
PLS D118	1 1/8 Dummy Cylinder"
Available in these Finishes- 03 (Bright Brass), 13 (Duro), and 26D (Satin Chrome)

PLS Keyblanks-

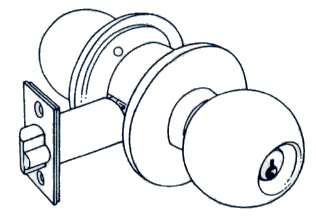

PLS Locksets-

All items available from your pls distributor-

E.L. REINHARDT St. Paul, Minnesota 800-328-1311

H.E. MITCHELL CO. Portland, Oregon 800-626-5625

LOCKS COMPANY Miami, Florida 800-288-0801

MAZIUK WHOLESALE DIST. Syracuse, New York 800-777-5945

McDONALD DASH Memphis, Tennessee 800-238-7541

R & H WHOLESALE San Francisco, California 800-367-5625

EEZ READERS , KEY MACHINE CUTTERS , AUTOTEL SOFTWARE ,
KEYTEL SOFTWARE , KEY HOOK & KEY TAGS , LINKS
PLS Home Page , PLS News , PLS Feedback

Cam Lock	Descripton
PLS-CL038 KD, KA PS101, KA PS102, KA HL305	3/8" Multi-Function Cam lock
PLS-CL078 KD, KA PS101, KA PS102, KA HL305	7/8" Multi-Function Cam lock
PLS-CL118 KD, KA PS101, KA PS102, KA HL305	1 1/8" Multi-Function Cam lock
PLS-CL138 KD, KA PS101, KA PS102, KA HL305	1 3/8" Multi-Function Cam lock
PLS-CL134 KD, KA PS101, KA PS102, KA HL305	1 3/4" Multi-Function Cam lock

E.L. REINHARDT	St. Paul, Minnesota	800-328-1311
H.E. MITCHELL CO.	Portland, Oregon	800-626-5625
LOCKS COMPANY	Miami, Florida	800-288-0801
MAZIUK WHOLESALE DIST.	Syracuse, New York	800-777-5945
McDONALD DASH	Memphis, Tennessee	800-238-7541
R & H WHOLESALE	San Francisco, California	800-367-5625
